IRF100PW219, 100V Power MOSFET

Public IRF100PW219 Final datasheet MOSFET StrongIRFET™ Power MOSFET, 100 V .
1 Maxi.

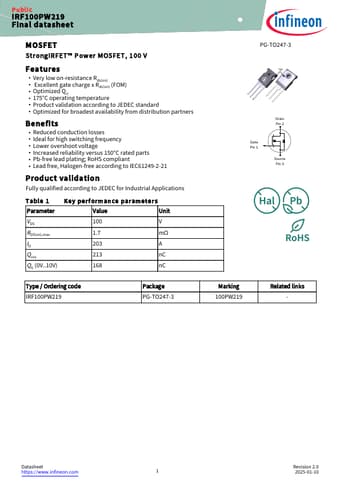

datasheet Preview Page 1 from Datasheet4u.com

IRF100PW219-Infineon.pdf

IRF100PW219 Datasheet Preview — Preview of IRF100PW219 PDF

Datasheet Details

Part number:

IRF100PW219

Manufacturer:

Infineon ↗

File Size:

1.01 MB

Description:

100V Power MOSFET

Features

* Very low on‑resistance Rds(on)
* Excellent gate charge x Rds(on) (FOM)
* Optimized Qrr
* 175°C operating temperature
* Product validation according to JEDEC standard
* Optimized for broadest availability from distribution partners Benefits

Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG (0V. .10V) Key performance parameters Value Unit 100 V 1.7 mΩ 203 A 213 nC 168 nC Type / Ordering code IRF100PW219 Package PG‑TO247‑3 PG‑TO247‑3 Tab 1 2 3 Gate Pin 1 Drain Pin 2 Source Pin 3 Marking 100PW219 Related links ‑ Datasheet
