IRF100S201 N-Channel MOSFET

IRF100S201 Description

Isc N-Channel MOSFET Transistor IRF100S201 *.

IRF100S201 Features

* With To-263(D2PAK) package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRF100S201 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 192 136 690 PD Total Dissipation @TC=25℃ 441 Tch Max. Operating

📥 Download Datasheet

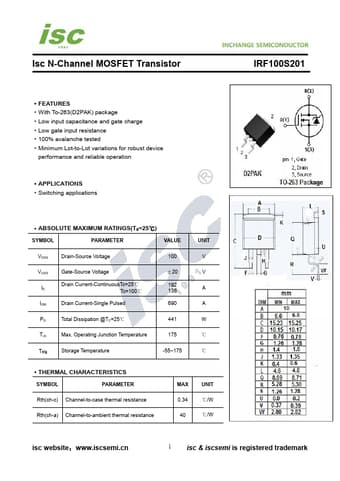

Preview of IRF100S201 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF100S201
Manufacturer
INCHANGE
File Size
253.90 KB
Datasheet
IRF100S201-INCHANGE.pdf
Description
N-Channel MOSFET
