IRFP260N, IRFP260NPbF - Power MOSFET

IRFP260N Description

IRFP260NPbF V(BR)DSS RDS(on) max.ID 200V 0.04 50A .
Fifth Generation HEXFET Power MOSFETs utilizes advanced processing techniques to achieve extremely low onresistance per silicon area.

IRFP260N Features

* Advanced Process Technology
* Dynamic dv/dt Rating
* 175°C Operating Temperature
* Fast Switching
* Fully Avalanche Rated
* Ease of Paralleling
* Simple Drive Requirements

IRFP260N Applications

* The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude th use of TO-220 devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. Base part number IRFP260NPbF Package Type TO-247AC Stan

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFP260N, IRFP260NPbF. Please refer to the document for exact specifications by model.

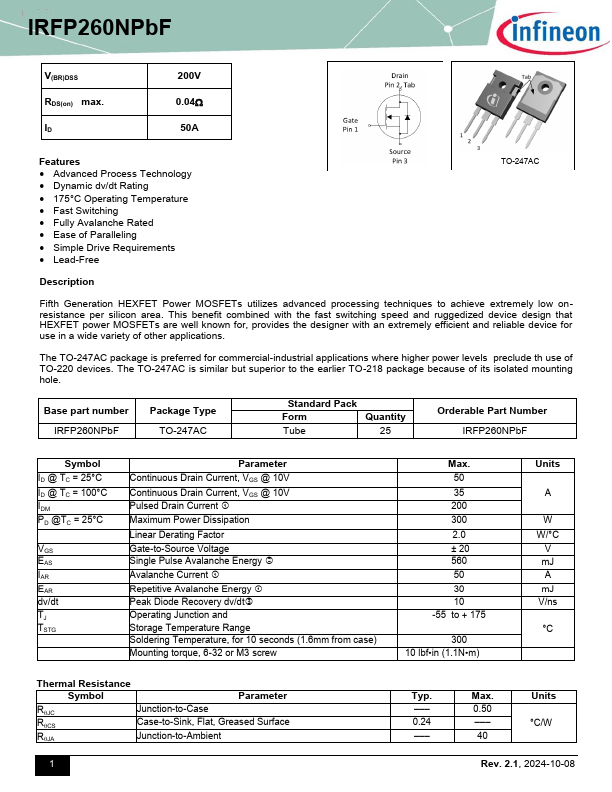

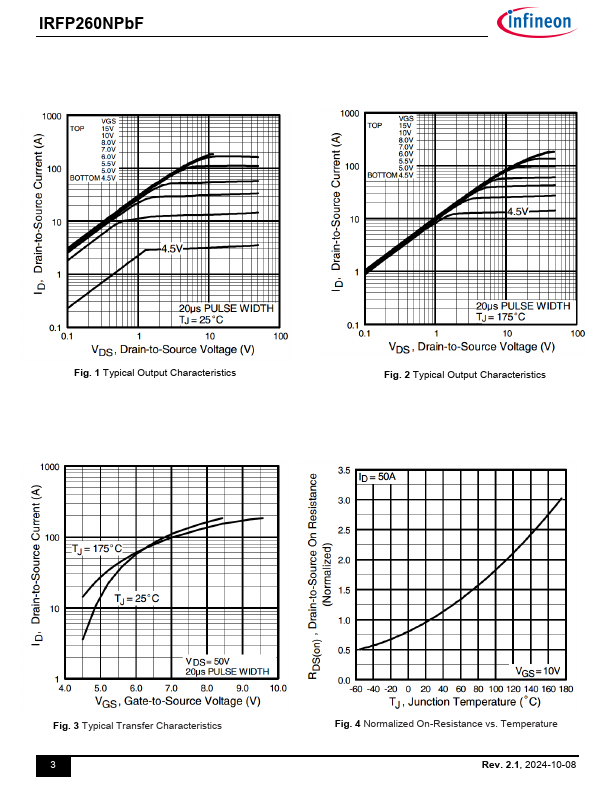

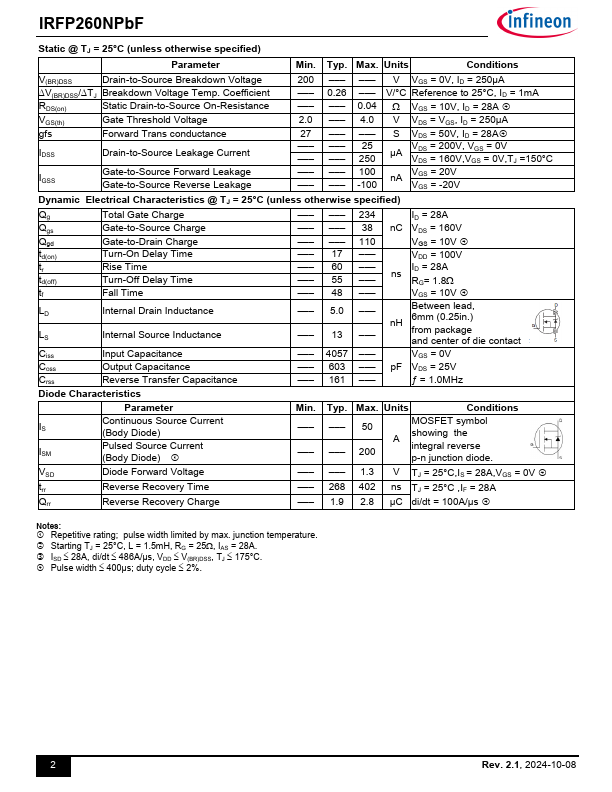

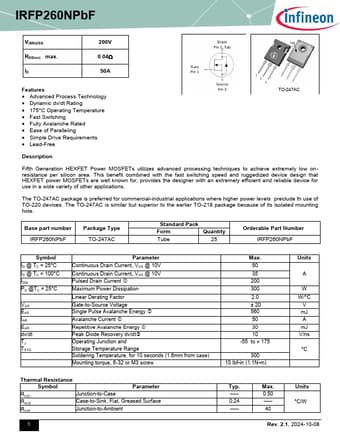

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFP260N, IRFP260NPbF
Manufacturer
Infineon ↗
File Size
1.27 MB
Datasheet
IRFP260NPbF-Infineon.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFP260N, IRFP260NPbF.
Please refer to the document for exact specifications by model.
