ISC240P06LM, -60V MOSFET

ISC240P06LM MOSFET OptiMOSTM Power Transistor, -60 V .

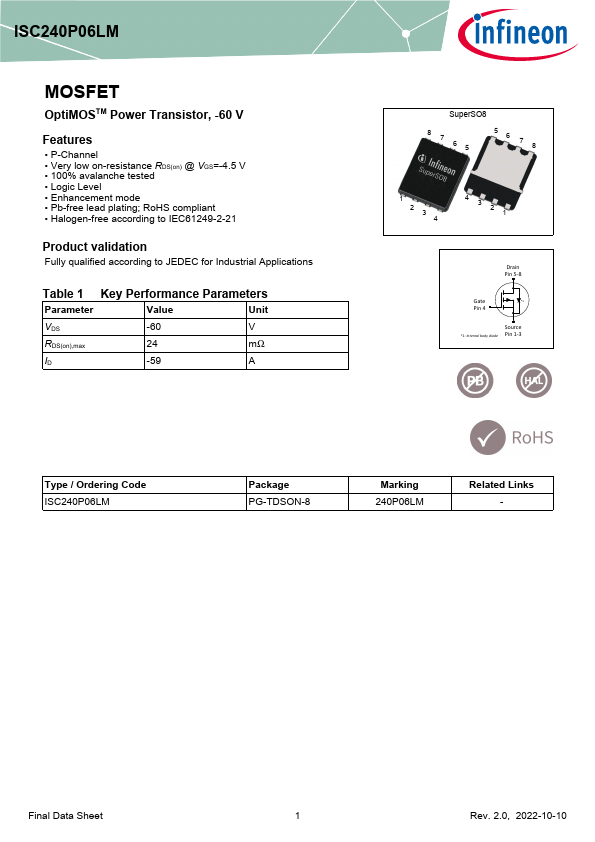

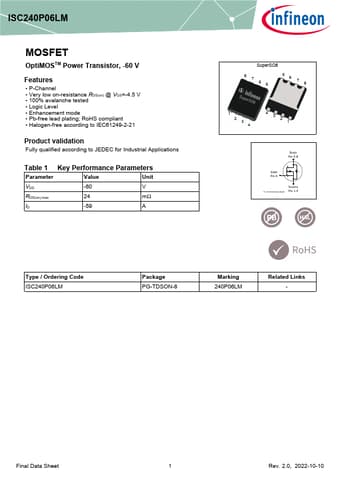

datasheet Preview Page 1 from Datasheet4u.com

ISC240P06LM-Infineon.pdf

ISC240P06LM Datasheet Preview — Preview of ISC240P06LM PDF

Datasheet Details

Part number:

ISC240P06LM

Manufacturer:

Infineon ↗

File Size:

1.21 MB

Description:

-60V MOSFET

Features

* P-Channel
* Very low on-resistance RDS(on) @ VGS=-4.5 V
* 100% avalanche tested
* Logic Level
* Enhancement mode
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS -60 V RDS(on),max 24 mΩ ID -59 A SuperSO8 8 7 65 56 78 1 23 4 4321 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code ISC240P06LM Package PG-TDSON-8 Marking 240P06LM
