ISZ033N03LF2S Datasheet - Infineon

ISZ033N03LF2S - 30V MOSFET

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

1 Maximum ratings .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

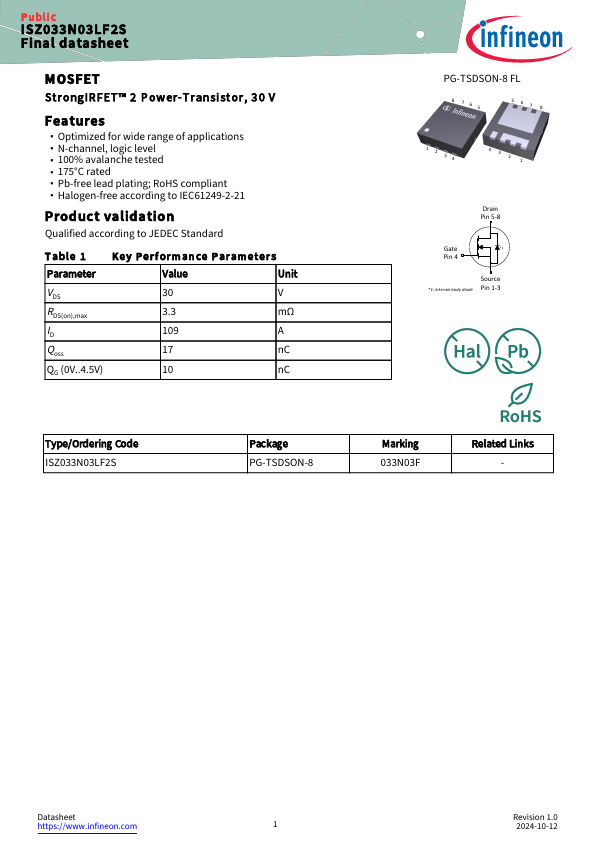

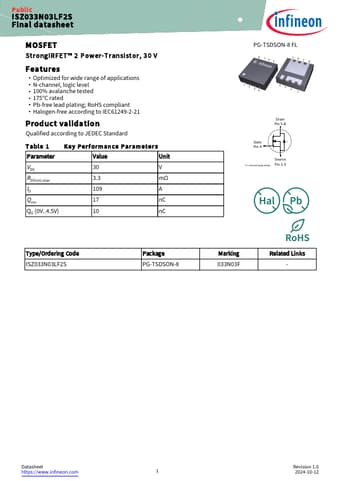

ISZ033N03LF2S Features

* Optimized for wide range of applications

* N‑channel, logic level

* 100% avalanche tested

* 175°C rated

* Pb‑free lead plating; RoHS compliant

* Halogen‑free according to IEC61249‑2‑21 Product validation Qualified according to JEDEC Standard Table 1

ISZ033N03LF2S-Infineon.pdf

Preview of ISZ033N03LF2S PDF

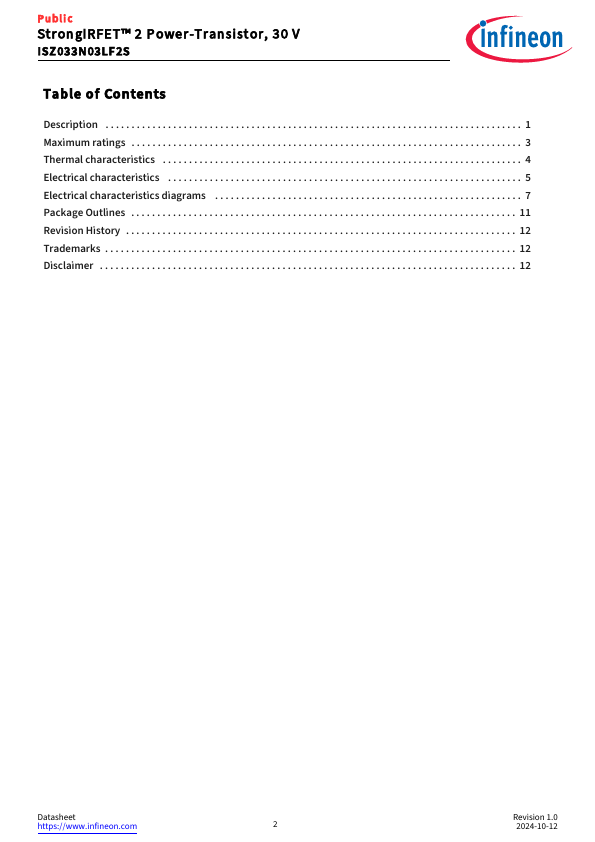

ISZ033N03LF2S Datasheet Preview Page 2 ISZ033N03LF2S Datasheet Preview Page 3

Datasheet Details

Part number:

ISZ033N03LF2S

Manufacturer:

Infineon ↗

File Size:

1.23 MB

Description:

30v mosfet.
