ISZ053N08NM6, MOSFET

ISZ053N08NM6 MOSFET OptiMOSTM 6 Power-Transistor, 80 V .

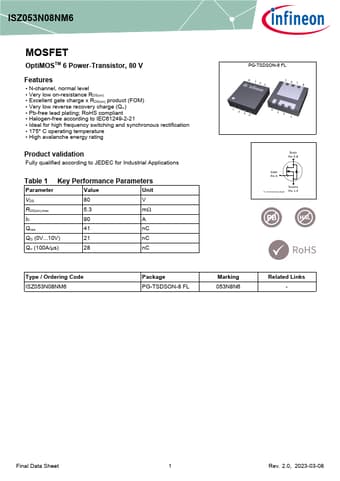

datasheet Preview Page 1 from Datasheet4u.com

ISZ053N08NM6-Infineon.pdf

ISZ053N08NM6 Datasheet Preview — Preview of ISZ053N08NM6 PDF

Datasheet Details

Part number:

ISZ053N08NM6

Manufacturer:

Infineon ↗

File Size:

1.32 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Excellent gate charge x RDS(on) product (FOM)
* Very low reverse recovery charge (Qrr)
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Ideal for hig

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 5.3 mΩ ID 90 A Qoss 41 nC QG (0V10V) 21 nC Qrr (100A/µs) 28 nC Type / Ordering Code ISZ053N08NM6 Package PG-TSDSON-8 FL PG-TSDSON-8 FL 8 765 567 8 1 2 34 43 2 1 Drain Pin 5-8 Gate
* 1
