ISZ0702NLS - MOSFET

ISZ0702NLS Description

ISZ0702NLS MOSFET OptiMOSTM5 Power-Transistor, 60 V .

ISZ0702NLS Features

* Ideal for high-frequency switching
* Optimized for charger
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Qualified for

ISZ0702NLS Applications

* Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 4.5 mΩ ID 86 A Qoss 25 nC QG(0V. .4.5V) 15 nC Type / Ordering Code ISZ0702NLS Package PG-TSDSON-8 FL PG-TSDSON-8 FL 8 765 567 8 1 2 34 43

📥 Download Datasheet

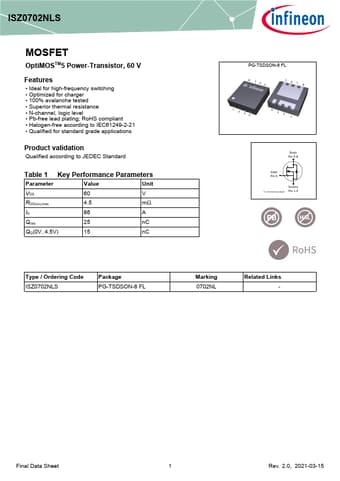

Preview of ISZ0702NLS PDF
datasheet Preview Page 2 datasheet Preview Page 3
