ISZ034N06LM5 Datasheet - Infineon

ISZ034N06LM5, 60V MOSFET

ISZ034N06LM5 MOSFET OptiMOSTM5 Power-Transistor, 60 V .

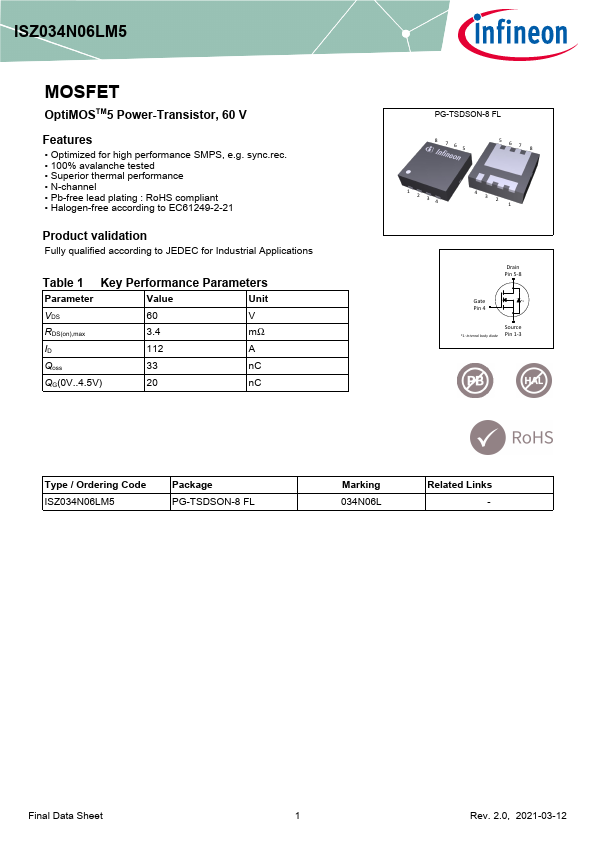

datasheet Preview Page 1 from Datasheet4u.com

ISZ034N06LM5-Infineon.pdf

ISZ034N06LM5 Datasheet Preview — Preview of ISZ034N06LM5 PDF

Datasheet Details

Part number:

ISZ034N06LM5

Manufacturer:

Infineon ↗

File Size:

1.17 MB

Description:

60V MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal performance
* N-channel
* Pb-free lead plating : RoHS compliant
* Halogen-free according to EC61249-2-21 Product validation Fully qualified according to JE

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 3.4 mΩ ID 112 A Qoss 33 nC QG(0V. .4.5V) 20 nC PG-TSDSON-8 FL 8 765 567 8 1 2 34 43 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code ISZ034
