ISZ0602NLS - 80V MOSFET

Product Overview

Infineon

📥 Download Datasheet

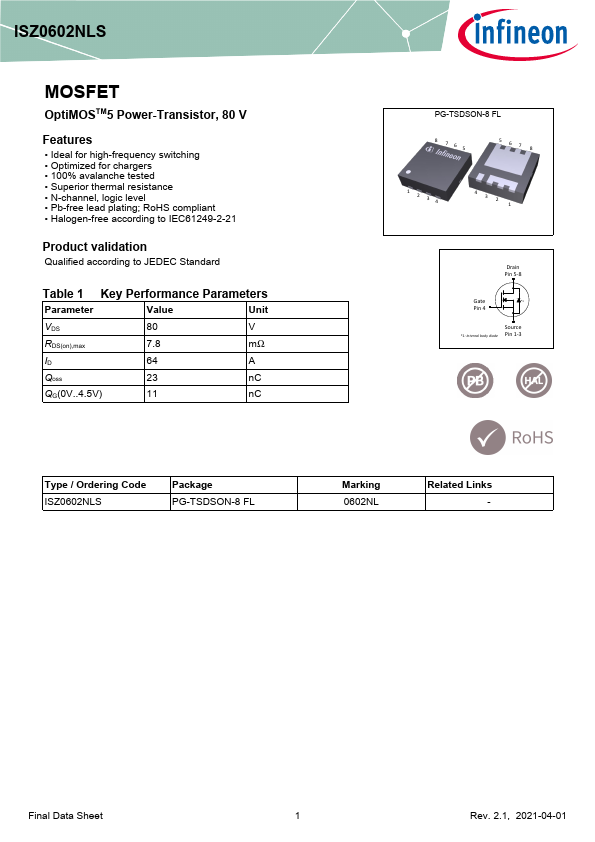

ISZ0602NLS 80V MOSFET by Infineon - Datasheet Preview — Datasheet preview – ISZ0602NLS

Datasheet Details

Part number	ISZ0602NLS
Manufacturer	Infineon
File Size	1.18 MB
Description	80V MOSFET
Datasheet	ISZ0602NLS Datasheet

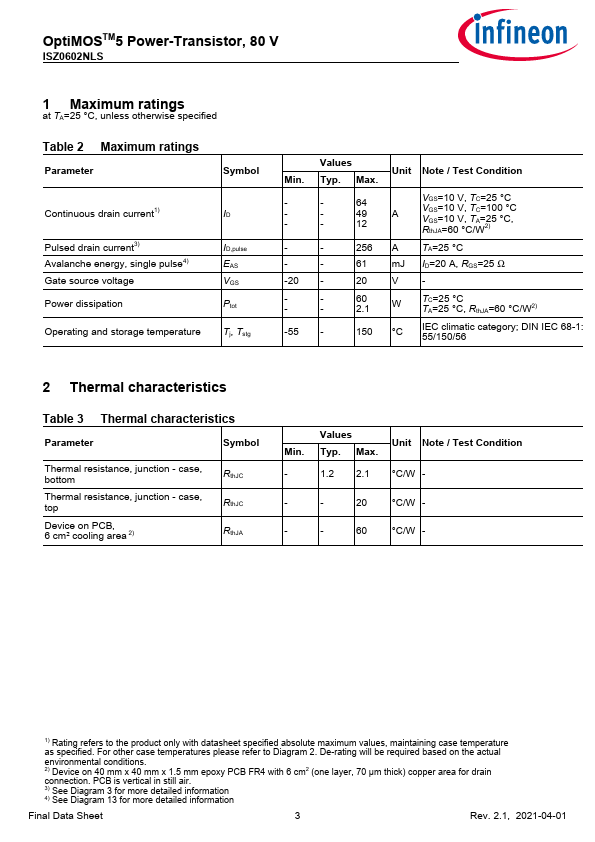

Additional preview pages of the ISZ0602NLS datasheet.

Product details

Description

. . .

Features

Ideal for high-frequency switching.
Optimized for chargers.
100% avalanche tested.
Superior thermal resistance.
N-channel, logic level.
Pb-free lead plating; RoHS compliant.
Halogen-free according to IEC61249-2-21 Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 7.8 mΩ ID 64 A Qoss 23 nC QG(0V. .4.5V) 11 nC PG-TSDSON-8 FL 8 7.
