TLD2141-3EP triple channel high-side driver

📥 Download Datasheet Datasheet Preview Page 1

Description

TLD2141-3EP LITIX™ Basic+ .

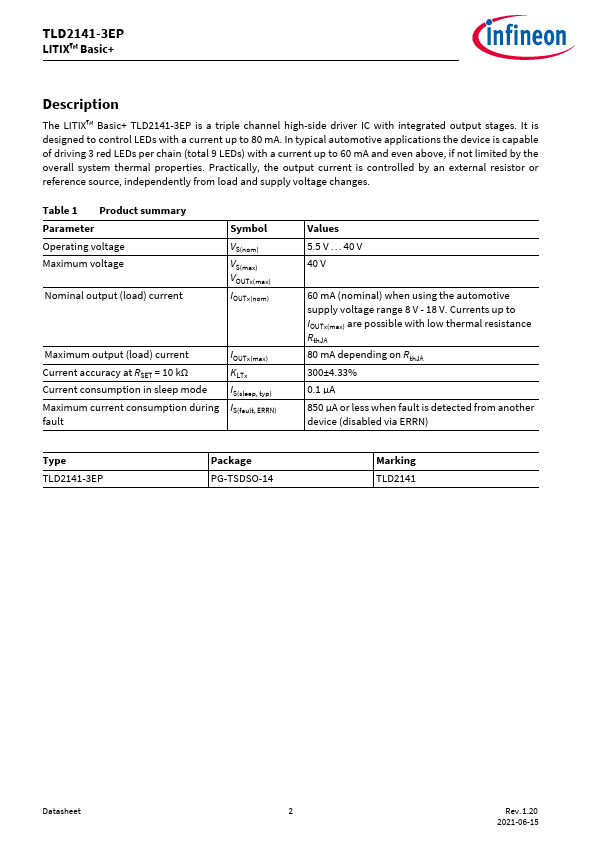

The LITIX™ Basic+ TLD2141-3EP is a triple channel high-side driver IC with integrated output stages.

📥 Download Datasheet

Preview of TLD2141-3EP PDF
datasheet Preview Page 2 datasheet Preview Page 3

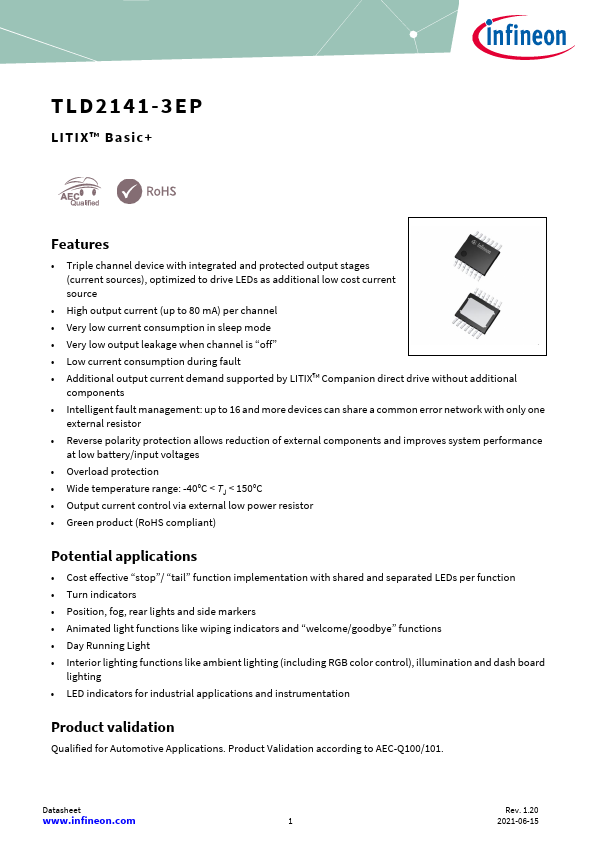

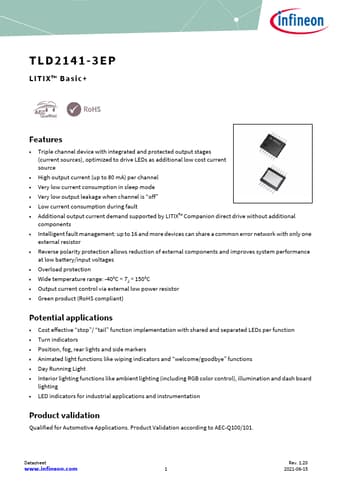

Features

* Triple channel device with integrated and protected output stages (current sources), optimized to drive LEDs as additional low cost current source
* High output current (up to 80 mA) per channel
* Very low current consumption in sleep mode
* Very low output leakage

Applications

* Cost effective “stop”/ “tail” function implementation with shared and separated LEDs per function
* Turn indicators
* Position, fog, rear lights and side markers
* Animated light functions like wiping indicators and “welcome/goodbye” functions
* Day Running
