TLD5095EL - Power LED Driver

Product Overview

Infineon

Part number	TLD5095EL
Manufacturer	Infineon
File Size	1.11 MB
Description	Power LED Driver
Datasheet	TLD5095EL Datasheet

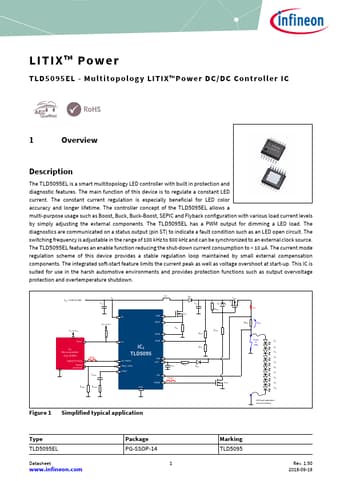

Additional preview pages of the TLD5095EL datasheet.

The TLD5095EL is a smart multitopology LED controller with built in protection and diagnostic

The main function of this device is to regulate a constant LED current. The constant current regulation is especially beneficial for LED color accuracy and longer lifetime. The controller concept of the TLD5095EL allows a multi-purpose usage such as Boost, Buck, Buck-Boost, SEPIC and Flyback configuration with various load current levels by simply adjusting the external components. The TLD5095EL has a PWM output for dimming a LED load. The diagnostics are communicated on a status output (pin ST.
