TLD5097EP - Power DC/DC Controller

Product Overview

Infineon

Part number	TLD5097EP
Manufacturer	Infineon
File Size	740.90 KB
Description	Power DC/DC Controller
Datasheet	TLD5097EP Datasheet

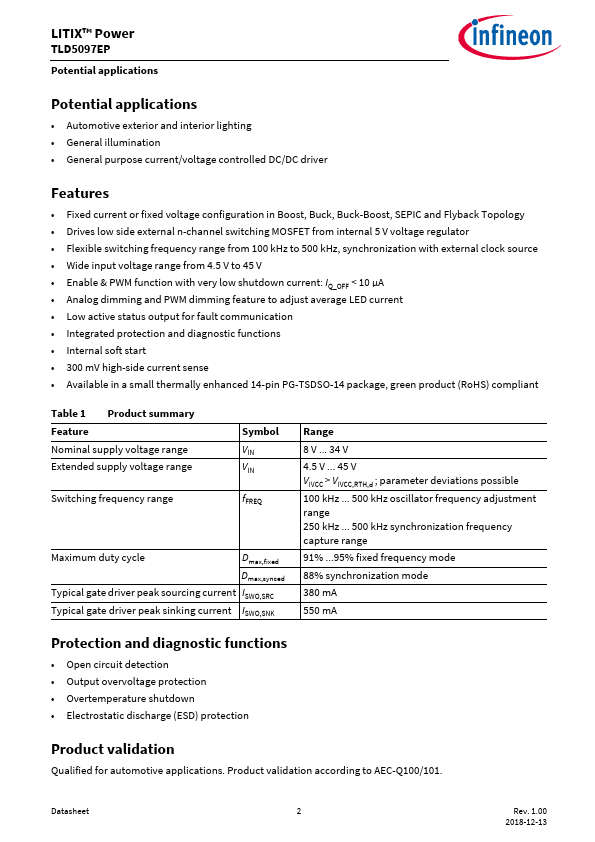

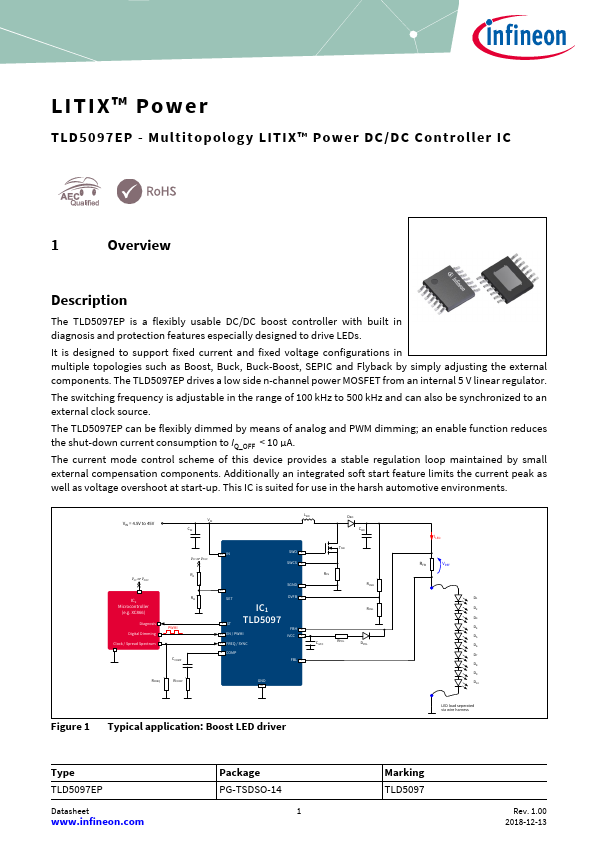

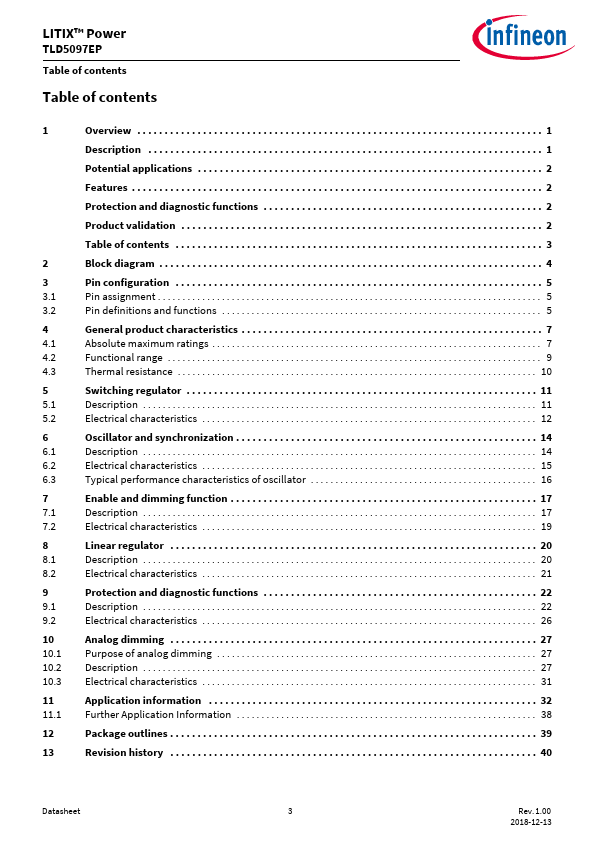

Additional preview pages of the TLD5097EP datasheet.

The TLD5097EP is a flexibly usable DC/DC boost controller with built in diagnosis and protection

especially designed to drive LEDs. It is designed to support fixed current and fixed voltage configurations in multiple topologies such as Boost, Buck, Buck-Boost, SEPIC and Flyback by simply adjusting the external components. The TLD5097EP drives a low side n-channel power MOSFET from an internal 5 V linear regulator. The switching frequency is adjustable in the range of 100 kHz to 500 kHz and can also be synchronized to an external clock source. The TLD5097EP can be flexibly dimmed by means of.
