TLD5099EP - Power DC/DC Controller

Product Overview

Infineon

Part number	TLD5099EP
Manufacturer	Infineon
File Size	893.76 KB
Description	Power DC/DC Controller
Datasheet	TLD5099EP Datasheet

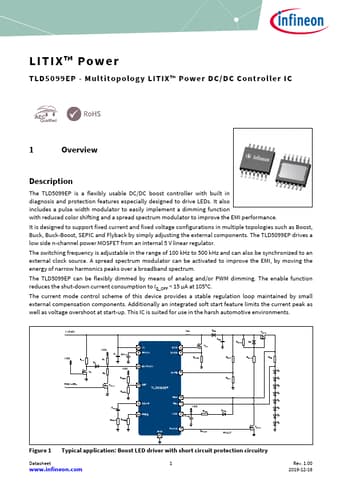

Additional preview pages of the TLD5099EP datasheet.

The TLD5099EP is a flexibly usable DC/DC boost controller with built in diagnosis and protection

especially designed to drive LEDs. It also includes a pulse width modulator to easily implement a dimming function with reduced color shifting and a spread spectrum modulator to improve the EMI performance. It is designed to support fixed current and fixed voltage configurations in multiple topologies such as Boost, Buck, Buck-Boost, SEPIC and Flyback by simply adjusting the external components. The TLD5099EP drives a low side n-channel power MOSFET from an internal 5 V linear regulator. The swi.
