TLE9015DQU - iso UART transceiver IC

Infineon

📥 Download Datasheet

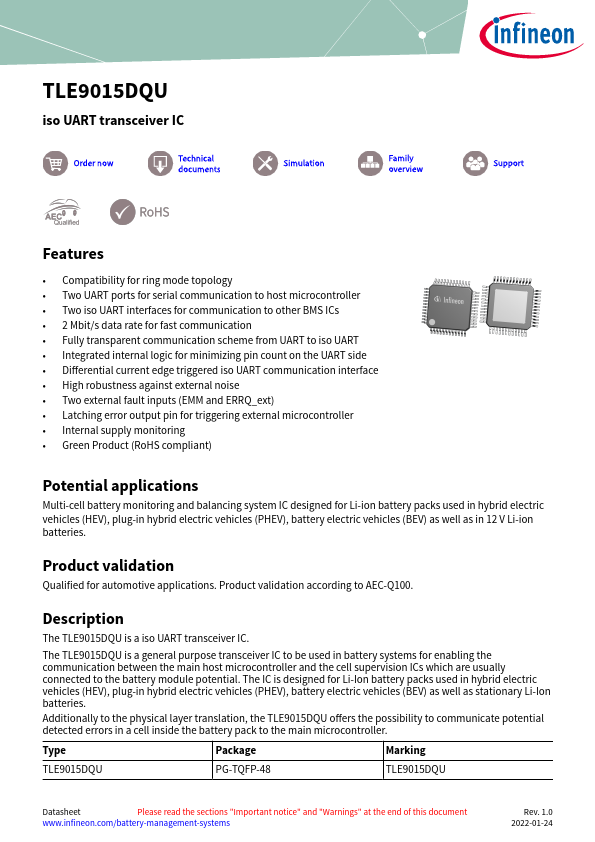

TLE9015DQU Datasheet Preview — Preview of TLE9015DQU PDF

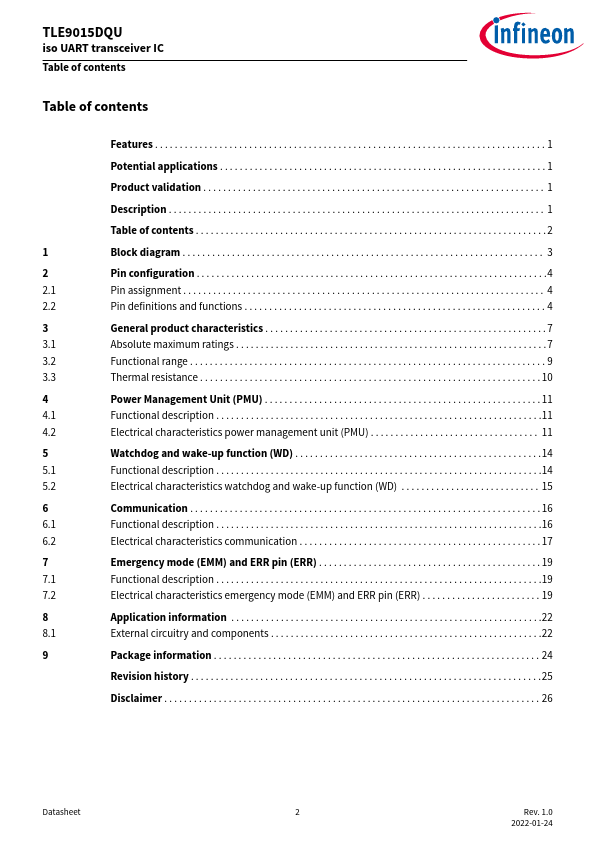

datasheet Preview Page 2

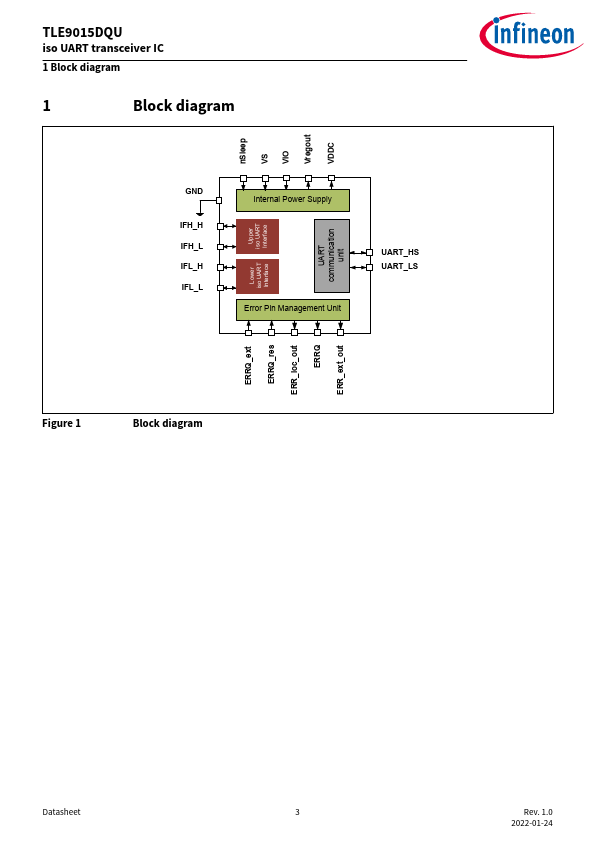

datasheet Preview Page 3

Datasheet Details

Part number	TLE9015DQU
Manufacturer	Infineon ↗
File Size	742.57 KB
Description	iso UART transceiver IC
Datasheet	TLE9015DQU-Infineon.pdf

TLE9015DQU Product details

Description

The TLE9015DQU is a iso UART transceiver IC.

Features

Compatibility for ring mode topology.
Two UART ports for serial communication to host microcontroller.
Two iso UART interfaces for communication to other BMS ICs.
2 Mbit/s data rate for fast communication.
Fully transparent communication scheme from UART to iso UART.
Integrated internal logic for minimizing pin count on the UART side.
Differential current edge triggered iso UART communication interface.
High robustness agai.
