ITDE10700D4 - High Power RF LDMOS FET

Innogration

📥 Download Datasheet

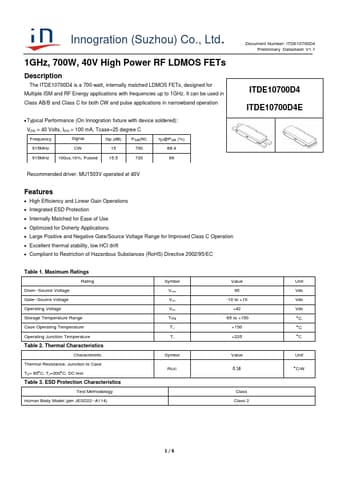

ITDE10700D4 Datasheet Preview — Preview of ITDE10700D4 PDF

Datasheet Details

Part number	ITDE10700D4
Manufacturer	Innogration
File Size	558.01 KB
Description	High Power RF LDMOS FET
Datasheet	ITDE10700D4-Innogration.pdf

ITDE10700D4 Product details

Description

The ITDE10700D4 is a 700-watt, internally matched LDMOS FETs, designed for Multiple ISM and RF Energy applications with frequencies up to 1GHz. Typical Performance (On Innogration fixture with device soldered): VDD = 40 Volts, IDQ = 100 mA, Tcase=25 degree C Frequency Signal Gp (dB) P3dB(W) D@P3dB (%) 915MHz CW 15 700 68.4 915MHz 100us,10%, Pulsed 15.5 720 69 Recommended driv

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Internally Matched for Ease of Use.
Optimized for Doherty.
