ITDE15551D4 - High Power RF LDMOS FET

Innogration

📥 Download Datasheet

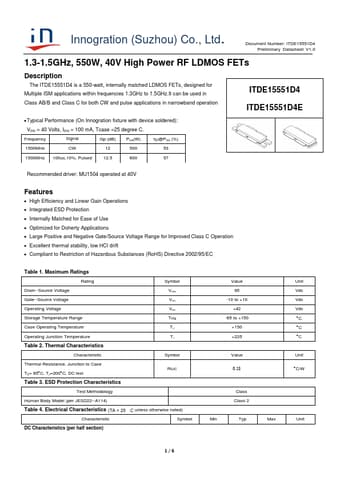

ITDE15551D4 Datasheet Preview — Preview of ITDE15551D4 PDF

Datasheet Details

Part number	ITDE15551D4
Manufacturer	Innogration
File Size	504.57 KB
Description	High Power RF LDMOS FET
Datasheet	ITDE15551D4-Innogration.pdf

ITDE15551D4 Product details

Description

The ITDE15551D4 is a 550-watt, internally matched LDMOS FETs, designed for Multiple ISM applications within frequencies 1.3GHz to 1.5GHz.It can be used in Class AB/B and Class C for both CW and pulse applications in narrowband operation ITDE15551D4 ITDE15551D4E Typical Performance (On Innogration fixture with device soldered): VDD = 40 Volts, IDQ = 100 mA, Tcase =25 degree C.Frequency Signal Gp (dB) Pout(W) D@Pout (%) 1500MHz CW 12 500 53 1500MHz 100us,10%, Pulsed 12.5 600

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Internally Matched for Ease of Use.
Optimized for Doherty.
