MR2006C - High Power RF LDMOS FET

MR2006C Description

MR2006C LDMOS TRANSISTOR Document Number: MR2006C Objective Datasheet V1.1 60W, 28V High Power RF LDMOS FETs .
The MR2006C is a 60-watt, unmatched LDMOS FETs, designed for Wide-band and Mobile radio applications with frequencies under 2000 MHz.

MR2006C Features

* High Efficiency and Linear Gain Operations
* Integrated ESD Protection
* Excellent thermal stability, low HCI drift
* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation

MR2006C Applications

* with frequencies under 2000 MHz. It can be used MR2006C in Class AB/B and Class C for all typical modulation formats. It can also operate at lower voltage down to 12V with decreased power capability.
* Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ =

📥 Download Datasheet

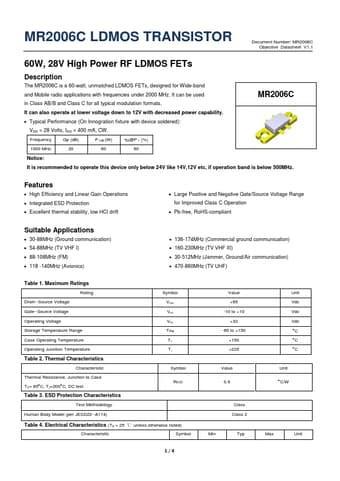

Preview of MR2006C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MR2006C
Manufacturer
Innogration
File Size
280.59 KB
Datasheet
MR2006C-Innogration.pdf
Description
High Power RF LDMOS FET
