MR2003C

High Power RF LDMOS FET

MR2003C Features

* High Efficiency and Linear Gain Operations

* Integrated ESD Protection

* Excellent thermal stability, low HCI drift

* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation

* Pb-free, RoHS-compliant Suitable Applicatio

MR2003C General Description

The MR2003C is a 30-watt, unmatched LDMOS FETs, designed for Wide-band and Mobile radio applications with frequencies under 2000 MHz. It can be used MR2003C in Class AB/B and Class C for all typical modulation formats. It can also operate at lower voltage down to 12V with decrease power capabilit.

MR2003C Datasheet (280.48 KB)

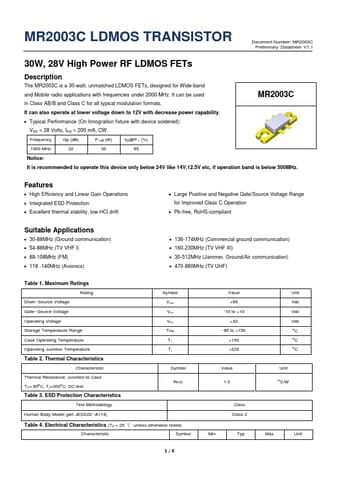

Preview of MR2003C PDF

Datasheet Details

Part number:

MR2003C

Manufacturer:

Innogration

File Size:

280.48 KB

Description:

High power rf ldmos fet.
