ISP4520 Datasheet - Insight SiP

ISP4520 - Smart LoRa and Bluetooth Low Energy Module

Preliminary Data Sheet ISP4520 Smart LoRa and Bluetooth Low Energy Module with MCU and Antennas This highly miniaturized LGA module, 9.8 x 17.2 x 1.7 mm, is based on the new SX126x LoRa transceiver series and nRF52832 BLE chip.

Using a simple user interface via the SPI connection and integrating a Cortex™ M4 CPU, flash and RAM memory combined with single optimized antenna for both LoRa and BLE standards, ISP4520 offers the perfect stand-alone module solution for large spectrum of application i

ISP4520 Features

* LoRaWAN Protocol Stack Single Mode BLE 5 Ready NFC-A Tag for OOB pairing Fully integrated LoRa & BLE matching and Antennas Integrated LoRa and BLE 32 MHz & 32.768 kHz Clocks LoRa section based on Semtech SX126x series transceiver BLE section based on Nordic Semi nRF52 Externally Controlled or using

ISP4520-InsightSiP.pdf

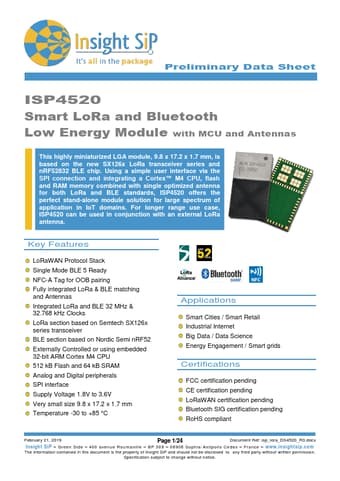

Preview of ISP4520 PDF
ISP4520 Datasheet Preview Page 2 ISP4520 Datasheet Preview Page 3

Datasheet Details

Part number:

ISP4520

Manufacturer:

Insight SiP

File Size:

2.58 MB

Description:

Smart lora and bluetooth low energy module.
