ICS307-03 Datasheet - Integrated Circuit Systems

ICS307-03 SERIALLY PROGRAMMABLE CLOCK SOURCE

The ICS307-03 is a dynamic, serially programmable clock source which is flexible and takes up minimal board space. Output frequencies are programmed via a 3-wire SPI port. An advanced PLL coupled to an array of configurable output dividers and three outputs allows low-jitter generation of frequencie.

ICS307-03 Features

* Crystal or clock reference input

* 3.3 V CMOS outputs

* Three outputs can be individually configured or shut off

* Small 16-pin TSSOP package

* Reprogrammable during operation

* 3-wire SPI serial interface

* Glitch-free output frequency switc

ICS307-03-IntegratedCircuitSystems.pdf

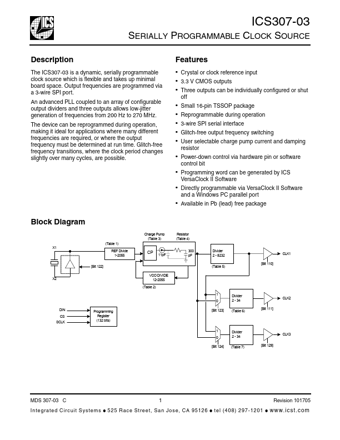

ICS307-03 Datasheet Preview — Preview of ICS307-03 PDF

Datasheet Details

Part number:

ICS307-03

Manufacturer:

Integrated Circuit Systems

File Size:

137.41 KB

Description:

Serially programmable clock source.
