ICS307-02

SERIALLY PROGRAMMABLE CLOCK SOURCE

ICS307-02 Features

* a default clock output at start-up. This product is intended for clock generation. It has low output jitter (variation in the output period), but input to output skew and jitter are not defined nor guaranteed. For applications which require defined input to output skew, use the ICS527-01. Features

ICS307-02 General Description

The ICS307-02 is a versatile serially programmable clock source which takes up very little board space. It can generate any frequency from 6 to 200 MHz and have a second configurable output. The outputs can be reprogrammed on the fly and will lock to a new frequency in 10 ms or less. Smooth transiti.

ICS307-02 Datasheet (214.47 KB)

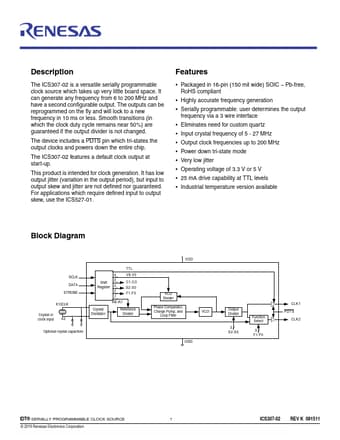

Preview of ICS307-02 PDF

Datasheet Details

Part number:

ICS307-02

Manufacturer:

Renesas ↗

File Size:

214.47 KB

Description:

Serially programmable clock source.
