ICS309 Datasheet - Integrated Circuit Systems

ICS309 SERIAL PROGRAMMABLE TRIPLE PLL SS VERSACLOCK SYNTHESIZER

The ICS309 is a versatile serially-programmable, triple PLL with spread spectrum clock source. The ICS309 can generate any frequency from 250kHz to 200 MHz, and up to 6 different output frequencies simultaneously. The outputs can be reprogrammed on-the-fly, and will lock to a new frequency in 10 ms .

ICS309 Features

* Packaged in 20-pin SSOP (QSOP)

* Highly accurate frequency generation

* M/N Multiplier PLL: M = 1..2048, N = 1..1024

* Serially programmable: user determines the output frequency via a 3-wire interface

* Spread Spectrum frequency modulation for reduced syst

ICS309_IntegratedCircuitSystems.pdf

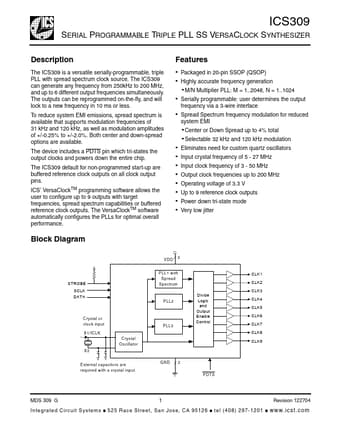

Preview of ICS309 PDF
ICS309 Datasheet Preview Page 2 ICS309 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS309

Manufacturer:

Integrated Circuit Systems

File Size:

132.64 KB

Description:

Serial programmable triple pll ss versaclock synthesizer.
