ICS308 Datasheet - Integrated Circuit Systems

ICS308 SERIAL PROGRAMMABLE QUAD PLL VERSACLOCK SYNTHESIZER

The ICS308 is a versatile serially programmable, quad PLL clock source. The ICS308 can generate any frequency from 250 kHz to 200 MHz, and up to 6 different output frequencies simultaneously. The outputs can be reprogrammed on the fly, and will lock to a new frequency in 10 ms or less. Smooth transi.

ICS308 Features

* Packaged in 20-pin SSOP (QSOP)

* Operating voltage of 3.3 V

* Highly accurate frequency generation

* M/N Multiplier PLL: M = 1..2048, N = 1..1024

* Serially programmable: user determines the output frequency via a 3-wire interface

* Eliminates need

ICS308_IntegratedCircuitSystems.pdf

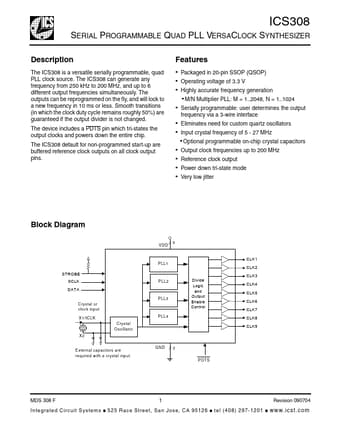

Preview of ICS308 PDF
ICS308 Datasheet Preview Page 2 ICS308 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS308

Manufacturer:

Integrated Circuit Systems

File Size:

134.18 KB

Description:

Serial programmable quad pll versaclock synthesizer.
