ICS31202 Datasheet - Integrated Circuit Systems

ICS31202, Dual Frequency Synthesizer

Integrated Circuit Systems, Inc.ICS31202 Preliminary Product Preview Dual Frequency Synthesizer General .
The ICS31202 is an integrated Dual Frequency Synthesizer designed for RF Personal Communication systems requiring two independent frequencies.

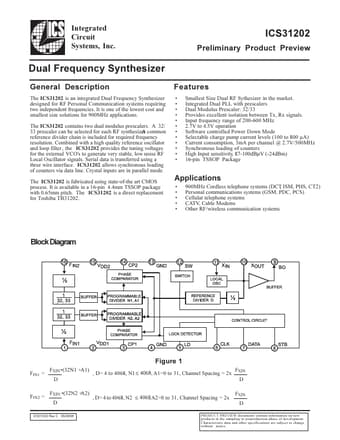

datasheet Preview Page 1 from Datasheet4u.com

ICS31202-IntegratedCircuitSystems.pdf

ICS31202 Datasheet Preview — Preview of ICS31202 PDF

Datasheet Details

Part number:

ICS31202

Manufacturer:

Integrated Circuit Systems

File Size:

1.14 MB

Description:

Dual Frequency Synthesizer

Features

* Smallest Size Dual RF Sythesizer in the market. Integrated Dual PLL with prescalers Dual Modulus Prescaler: 32/33 Provides excellent isolation between Tx, Rx signals. Input frequency range of 200-600 MHz 2.7V to 4.5V operation Software controlled Power Down Mode Selectable ch

Applications

* The ICS31202 contains two dual modulus prescalers. A 32/ 33 prescaler can be selected for each RF synthesizer . A common reference divider chain is included for required frequency resolution. Combined with a high quality reference oscillator and loop filter , the ICS31202 provides the tuning voltag
