ICS307-03

SERIALLY PROGRAMMABLE CLOCK SOURCE

ICS307-03 Features

* Crystal or clock reference input

* 3.3 V CMOS outputs

* Three outputs can be individually configured or shut off

* Small 16-pin TSSOP package

* Pb-free, RoHS compliant

* Reprogrammable during operation

* 3-wire SPI serial interface

ICS307-03 General Description

The ICS307-03 is a dynamic, serially programmable clock source which is flexible and takes up minimal board space. Output frequencies are programmed via a 3-wire SPI port. An advanced PLL coupled to an array of configurable output dividers and three outputs allows low-jitter generation of frequencie.

ICS307-03 Datasheet (293.15 KB)

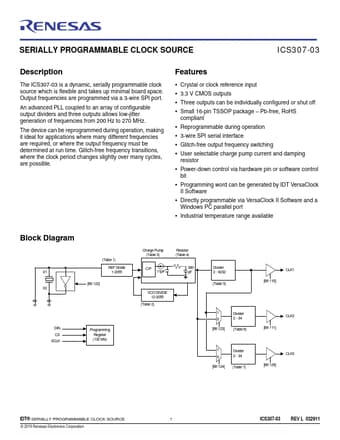

Preview of ICS307-03 PDF

Datasheet Details

Part number:

ICS307-03

Manufacturer:

Renesas ↗

File Size:

293.15 KB

Description:

Serially programmable clock source.
