ICS307-01

SERIALLY PROGRAMMABLE CLOCK SOURCE

ICS307-01 Features

* a default clock output at start-up and is recommended for all new designs. This product is intended for clock generation. It has low output jitter (variation in the output period), but input to output skew and jitter are not defined nor guaranteed. For applications which require defined input to out

ICS307-01 General Description

The ICS307-01 and ICS307-02 are versatile serially programmable clock sources which take up very little board space. They can generate any frequency from 6 to 200 MHz and have a second configurable output. The outputs can be reprogrammed on the fly and will lock to a new frequency in 10 ms or less. .

ICS307-01 Datasheet (162.18 KB)

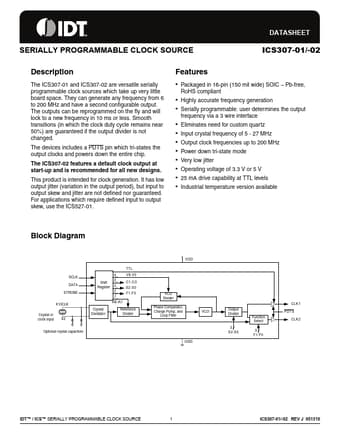

Preview of ICS307-01 PDF

Datasheet Details

Part number:

ICS307-01

Manufacturer:

IDT

File Size:

162.18 KB

Description:

Serially programmable clock source.
