ICS333

Qtclock Triple Output Clock

ICS333 Features

* 8 pin SOIC package Zero ppm synthesis error Input crystal frequency from 5 to 27 MHz Input clock frequency from 3 to 50 MHz Three output clocks Spread spectrum capability for low EMI Output

ICS333 General Description

The ICS333 is a low cost frequency generator that is factory programmable. Using analog/digital Phase-Locked-Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal or clock input to produce three output clocks. One or more of the outputs can be programmed to implemen.

ICS333 Datasheet (92.18 KB)

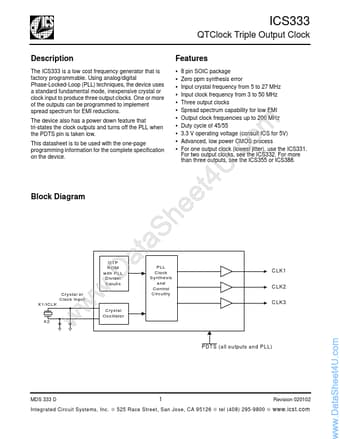

Preview of ICS333 PDF

Datasheet Details

Part number:

ICS333

Manufacturer:

Integrated Circuit Systems

File Size:

92.18 KB

Description:

Qtclock triple output clock.
