ICS345

Triple PLL Field Programmable SS VersaClock Synthesizer

ICS345 Features

* include eight selectable configuration registers, up to two sets of four low-skew outputs, and optional Spread Spectrum outputs. Using Phase-Locked Loop (PLL) techniques, the device runs from a standard fundamental mode, inexpensive crystal, or clock. It can replace multiple crystals and oscillators

ICS345 General Description

The ICS345 field programmable clock synthesizer generates up to nine high-quality, high-frequency clock outputs including multiple reference clocks from a low-frequency crystal or clock input. It is designed to replace crystals and crystal oscillators in most electronic systems. Using ICS’ VersaCloc.

ICS345 Datasheet (153.51 KB)

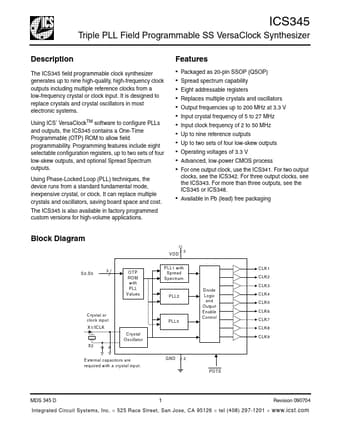

Preview of ICS345 PDF

Datasheet Details

Part number:

ICS345

Manufacturer:

Integrated Circuit Systems

File Size:

153.51 KB

Description:

Triple pll field programmable ss versaclock synthesizer.
