ICS650G-36, ICS650-36 Datasheet - Integrated Circuit Systems

ICS650G-36 Networking & PCI Clock Source

The ICS650-36 is a low cost frequency generator designed to support networking and PCI applications. Using analog/digital Phase Locked-Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal input of 25 MHz to produce four output clocks supporting LAN, PCI, and 100M S.

ICS650G-36 Features

* Packaged in 16-pin TSSOP Available in Pb (lead) free package Replaces multiple crystals and oscillators Input crystal or clock frequency of 25 MHz Fixed reference output frequency of 25 MHz Selectable

ICS650-36_IntegratedCircuitSystems.pdf

This datasheet PDF includes multiple part numbers: ICS650G-36, ICS650-36. Please refer to the document for exact specifications by model.

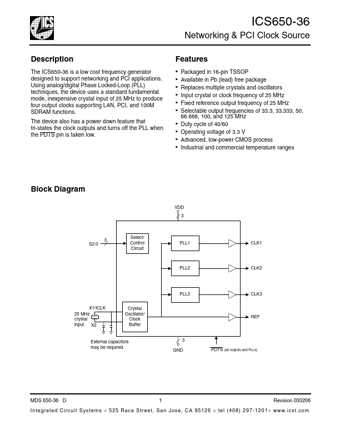

ICS650G-36 Datasheet Preview Page 2 ICS650G-36 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS650G-36, ICS650-36

Manufacturer:

Integrated Circuit Systems

File Size:

162.86 KB

Description:

Networking & pci clock source.

Note:

This datasheet PDF includes multiple part numbers: ICS650G-36, ICS650-36.
Please refer to the document for exact specifications by model.
