ICS650-07C

NETWORKING CLOCK SOURCE

ICS650-07C Datasheet (354.41 KB)

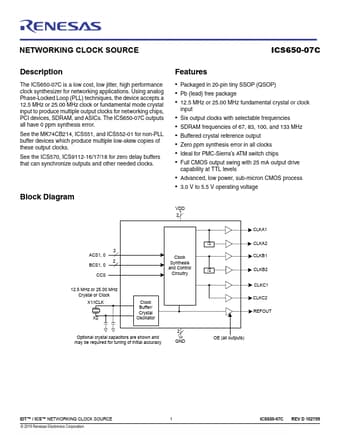

Preview of ICS650-07C PDF Datasheet

Datasheet Details

Part number:

ICS650-07C

Manufacturer:

Renesas ↗

File Size:

354.41 KB

Description:

Networking clock source

ICS650-07C Features

* Packaged in 20-pin tiny SSOP (QSOP)

* Pb (lead) free package

* 12.5 MHz or 25.00 MHz fundamental crystal or clock input

* Six output clocks with selectable frequencies

* SDRAM frequencies of 67, 83, 100, and 133 MHz

* Buffered crystal reference outpu

ICS650-07C General Description

The ICS650-07C is a low cost, low jitter, high performance clock synthesizer for networking applications. Using analog Phase-Locked Loop (PLL) techniques, the device accepts a 12.5 MHz or 25.00 MHz clock or fundamental mode crystal input to produce multiple output clocks for networking chips, PCI de.
