ICS650-14B

Networking System Clock

ICS650-14B Features

* Packaged in 20 pin (150 mil) SSOP (QSOP)

* 25.00 MHz fundamental crystal or clock input

* One fixed output clock of one 25.0 MHz

* One bank of four frequency selectable output clocks

* Three frequency selectable clock outputs

* Zero ppm synthesis err

ICS650-14B General Description

The ICS650-14B is a low cost, low jitter, high performance clock synthesizer customized for networking systems applications. Using analog Phase-Locked Loop (PLL) techniques, the device accepts a 25.0 MHz clock or fundamental mode crystal input to produce multiple output clocks of one fixed 25.0 MHz,.

ICS650-14B Datasheet (105.28 KB)

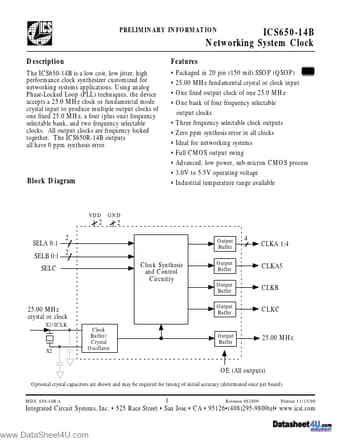

Preview of ICS650-14B PDF

Datasheet Details

Part number:

ICS650-14B

Manufacturer:

Integrated Circuit Systems

File Size:

105.28 KB

Description:

Networking system clock.
