ICS650-05

HDTV Clock Synthesizer

ICS650-05 Features

* Packaged in 20 pin tiny SSOP (QSOP) Input Frequency of 27.0 MHz Zero ppm synthesis error in output clocks Provides fixed 13.5 MHz, dual 27.0 MHz, and 54.0 MHz output clocks with a selectable Frame Rate Clock of 74.175824 MHz or 74.250000 MHz

* Ideal fo

ICS650-05 General Description

The ICS650-05 is a low cost, low jitter, high performance clock synthesizer designed to produce 74.175824 MHz and 74.250000 MHz as necessary for HDTV applications. Using our patented analog Phase-Locked Loop (PLL) techniques, the device uses a 27.0 MHz clock or fundamental crystal input to produce b.

ICS650-05 Datasheet (114.19 KB)

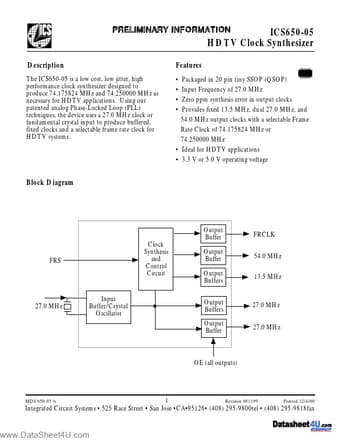

Preview of ICS650-05 PDF

Datasheet Details

Part number:

ICS650-05

Manufacturer:

Integrated Circuit Systems

File Size:

114.19 KB

Description:

Hdtv clock synthesizer.
