ICS650-12

MPEG Clock Synthesizer

ICS650-12 Datasheet (117.58 KB)

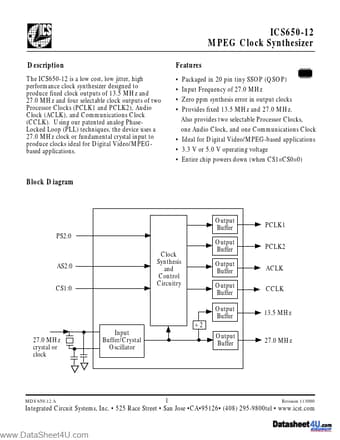

Preview of ICS650-12 PDF Datasheet

Datasheet Details

Part number:

ICS650-12

Manufacturer:

Integrated Circuit Systems

File Size:

117.58 KB

Description:

Mpeg clock synthesizer.

ICS650-12 Features

* Packaged in 20 pin tiny SSOP (QSOP) Input Frequency of 27.0 MHz Zero ppm synthesis error in output clocks Provides fixed 13.5 MHz and 27.0 MHz. Also provides two selectable Processor Clocks, one Audio Clock, and one Communications Clock

* Ideal for Dig

ICS650-12 General Description

The ICS650-12 is a low cost, low jitter, high performance clock synthesizer designed to produce fixed clock outputs of 13.5 MHz and 27.0 MHz and four selectable clock outputs of two Processor Clocks (PCLK1 and PCLK2), Audio Clock (ACLK), and Communications Clock (CCLK). Using our patented analog Pha.
