ICS650-11B - BroadCom Networking Clock Synthesizer

Integrated Circuit Systems

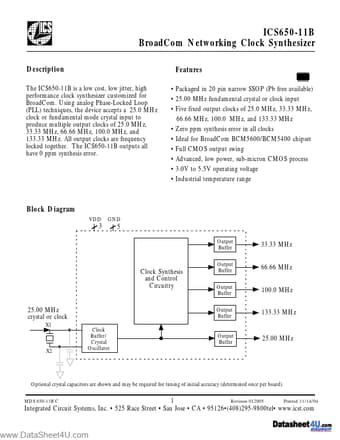

The ICS650-11B by Integrated Circuit Systems is a BroadCom Networking Clock Synthesizer. Below is the official datasheet preview.

Datasheet Details

Part number	ICS650-11B
Manufacturer	Integrated Circuit Systems
File Size	127.14 KB
Description	BroadCom Networking Clock Synthesizer
Datasheet	ICS650-11B_IntegratedCircuitSystems.pdf
Additional preview pages of the ICS650-11B datasheet.

The ICS650-11B is a low cost, low jitter, high performance clock synthesizer customized for BroadCom.

Packaged in 20 pin narrow SSOP (Pb free available).
25.00 MHz fundamental crystal or clock input.
Five fixed output clocks of 25.0 MHz, 33.33 MHz, 66.66 MHz, 100.0 MHz, and 133.33 MHz.
Zero ppm synthesis error in all clocks.
Ideal for BroadCom BCM5600/BCM5400 chipset.
Full CMOS output swing.
Advanced, low power, sub-micron CMOS process.
3.0V to 5.5V operating voltage.
Industrial temperature range.
