ICS650-01B Datasheet, Source, Integrated Circuit Systems

ICS650-01B Features

  • Source
  • Packaged in 20 pin tiny SSOP (QSOP) ª Operating VDD of 3.3V or 5V
  • Less than one ppm synthesis error in all clocks
  • Inexpensive 14.31818 MHz crystal or clock

PDF File Details

Part number:

ICS650-01B

Manufacturer:

Integrated Circuit Systems

File Size:

42.18kb

Download:

📄 Datasheet

Description:

System peripheral clock source. The ICS650-01B is a low cost, low jitter, high performance clock synthesizer for system peripheral applications. Using analog/digital

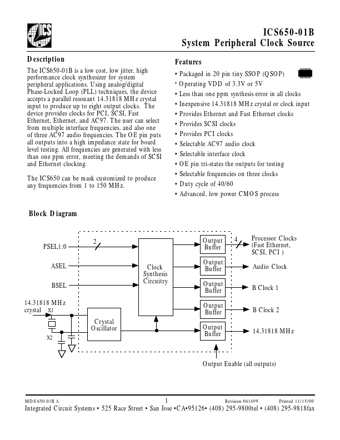

Datasheet Preview: ICS650-01B 📥 Download PDF (42.18kb)
Page 2 of ICS650-01B Page 3 of ICS650-01B

ICS650-01B Application

  • Applications Using analog/digital Phase-Locked Loop (PLL) techniques, the device accepts a parallel resonant 14.31818 MHz crystal input to produce
