ICS83840

DDR SDRAM MUX

ICS83840 Features

* 40 low skew single-ended DIMM ports

* 4 SSTL-2 compatible enable inputs

* Maximum Switching Speed: 3ns

* Output skew: 120ps (maximum)

* Bank skew: 45ps (maximum)

* ron = 8Ω (typical)

* Full 2.5V supply modes

* 0°C to 70°C ambient oper

ICS83840 General Description

The ICS83840 is a DDR SDRAM MUX and is a member of the HiPerClock S™ family of High HiPerClockS™ Performance Clock Solutions from ICS. The device has 10 Host Lines and each host line can be passed to 4 Data Ports. The 10 channels are allocated as follows in the DDR SDRAM application: 8 data lines, 1.

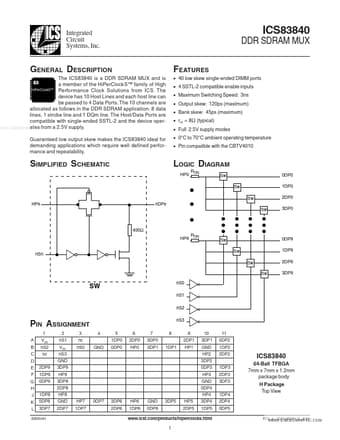

ICS83840 Datasheet (174.47 KB)

Preview of ICS83840 PDF

Datasheet Details

Part number:

ICS83840

Manufacturer:

Integrated Circuit Systems

File Size:

174.47 KB

Description:

Ddr sdram mux.
