ICS83841 - DDR SDRAM 2:1 MUX

ICS83841 Description

Integrated Circuit Systems, Inc.ICS83841 20 BIT, DDR SDRAM 2:1 MUX .
The ICS83841 is a 20 Bit, DDR SDRAM 2:1 MUX and is a member of the HiPerClockS™ family of HiPerClockS™ High Performance Clock Solutions from ICS.

ICS83841 Features

* Forty low skew single-ended DIMM ports
* One SSTL-2 compatible select input
* Maximum Switching Speed: 3ns
* Output skew: 180ps (maximum)
* ron = 20Ω (typical)
* Full 2.5V supply modes
* 0°C to 70°C ambient operating temperature
* Ava

ICS83841 Applications

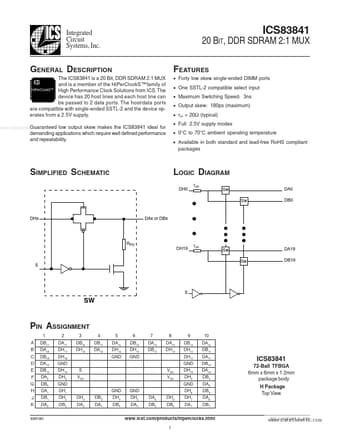

* which require well defined performance and repeatability. SIMPLIFIED SCHEMATIC LOGIC DIAGRAM DH0 ron Sw Sw DA0 DB0 DHx DAx or DBx RPD DH19 ron Sw Sw DA19 DB19 S S SW PIN ASSIGNMENT 1 A B C D E F G H J K DB17 DA18 DB18 DA19 DB19 DA0 DB0 DA1 DB1 DA2 2 DA17 DH17 DH18 GND DH19 DH0 GND DH1 D
