ICS83840B

DDR SDRAM MUX

ICS83840B Features

* 40 low skew single-ended DIMM ports

* 4 SSTL-2 compatible enable inputs

* Maximum Switching Speed: 3ns

* Output skew: 120ps (maximum)

* Bank skew: 60ps (maximum)

* ron = 8Ω (typical)

* Full 2.5V supply modes

* 0°C to 70°C ambient oper

ICS83840B General Description

The ICS83840B is a DDR SDRAM MUX and is ICS a member of the HiPerClockS™ family of High HiPerClockS™ Performance Clock Solutions from ICS. The device has 10 Host Lines and each host line can be passed to 4 Data Ports. The 10 channels are allocated as follows in the DDR SDRAM application: 8 data line.

ICS83840B Datasheet (165.16 KB)

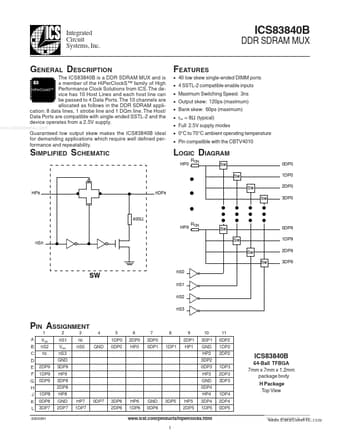

Preview of ICS83840B PDF

Datasheet Details

Part number:

ICS83840B

Manufacturer:

Integrated Circuit Systems

File Size:

165.16 KB

Description:

Ddr sdram mux.
