ICS843004-01 - FEMTOCLOCKS- CRYSTAL-TO- 3.3V LVPECL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS843004-01
Manufacturer	Integrated Circuit Systems
File Size	256.08 KB
Description	FEMTOCLOCKS- CRYSTAL-TO- 3.3V LVPECL FREQUENCY SYNTHESIZER
Datasheet	ICS843004-01 Datasheet
Additional preview pages of the ICS843004-01 datasheet.

Product details

Description

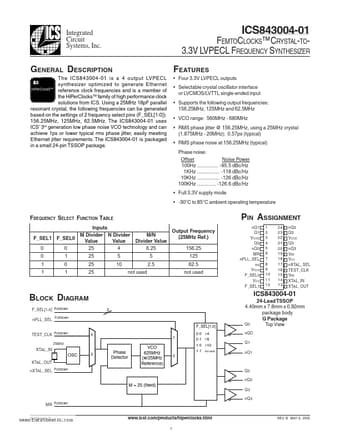

The ICS843004-01 is a 4 output LVPECL synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Features

Four 3.3V LVPECL outputs.
Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
Supports the following output frequencies: 156.25MHz, 125MHz and 62.5MHz.
VCO range: 560MHz - 680MHz.
RMS phase jitter @ 156.25MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.57ps (typical).
RMS phase noise at 156.25MHz (typical) Phase noise: Offset Noise Power 100Hz -95.5 dBc/Hz 1KHz -118 dBc/Hz 10KHz -126 dBc/Hz 100KHz -126.6 dBc/Hz.
