ICS843004 - FEMTOCLOCKS LVCMOS/CRYSTAL-TO- 3.3V LVPECL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS843004
Manufacturer	Integrated Circuit Systems
File Size	330.56 KB
Description	FEMTOCLOCKS LVCMOS/CRYSTAL-TO- 3.3V LVPECL FREQUENCY SYNTHESIZER
Datasheet	ICS843004 Datasheet

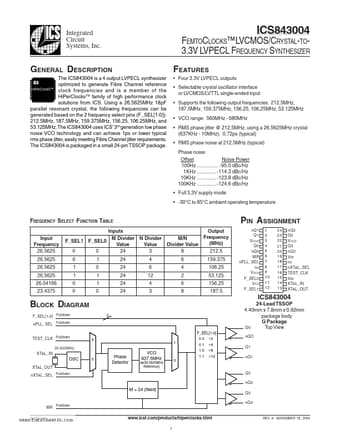

Additional preview pages of the ICS843004 datasheet.

Product details

Description

The ICS843004 is a 4 output LVPECL synthesizer optimized to generate Fibre Channel reference HiPerClockS™ clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Features

Four 3.3V LVPECL outputs.
Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
Supports the following output frequencies: 212.5MHz, 187.5MHz, 159.375MHz, 156.25, 106.25MHz, 53.125MHz.
VCO range: 560MHz - 680MHz.
RMS phase jitter @ 212.5MHz, using a 26.5625MHz crystal (637KHz - 10MHz): 0.72ps (typical).
RMS phase noise at 212.5MHz (typical) Phase noise: Offset Noise Power 100Hz -95.0 dBc/Hz 1KHz -114.3 dBc/Hz 10KHz -.
