ICS843004-02 - CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER

ICS843004-02 Description

PRELIMINARY Integrated Circuit Systems, Inc.ICS843004-02 www.DataSheet4U.com CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER .
The ICS843004-02 is a 4 output LVPECL Synthesizer optimized to generate clock HiPerClockS™ frequencies for a variety of high performance applications.

ICS843004-02 Features

* Four 3.3V LVPECL outputs
* Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input
* Crystal input range: 14MHz - 37.78MHz
* VCO Range: 560MHz - 680MHz

ICS843004-02 Applications

* SONET, Ethernet, Serial ATA, SCSI and HDTV
* RMS phase jitter @ 155.52MHz (12kHz - 20MHz): 0.91ps (typical) Offset Noise Power 100Hz -97.1 dBc/Hz 1kHz -121.6 dBc/Hz 10kHz -124.9 dBc/Hz 100kHz -125.1 dBc/Hz
* Full 3.3V supply mode
* 0°C to 70°C ambient operating temperatu

📥 Download Datasheet

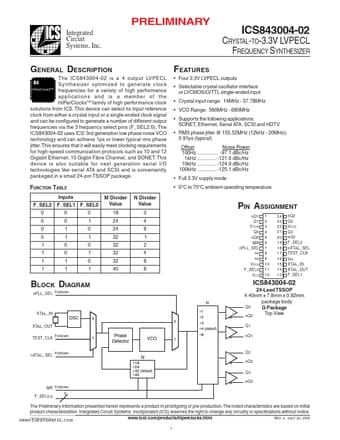

Preview of ICS843004-02 PDF
