ICS9148-11 Frequency Generator & Integrated Buffers

The ICS9148-11 generates all clocks required for high speed RISC or CISC microprocessor systems such as Intel PentiumPro. An output enable pin is provided for testability. MODE allows power management functions: CPU_STOP#, PCI_STOP# & PWR_DWN#. High drive BCLK outputs typically provide greater than .

ICS9148-11 Features

* Generates four processor, six bus, one 14.31818MHz and 12 SDRAM clocks. Synchronous clocks skew matched to 250ps window on CPU, SDRAM and 500ps window on BUS clocks. CPUCLKs to BUS clocks skew 1-4 ns (CPU early) Test clock mode eases system design Custom configurations available

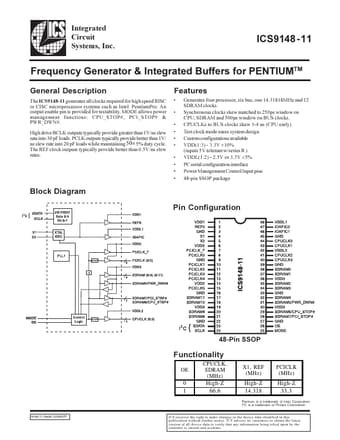

ICS9148-11 Datasheet (580.55 KB)

ICS9148-11 Datasheet Preview — Preview of ICS9148-11 PDF

Datasheet Details

Part number:

ICS9148-11

Manufacturer:

Integrated Circuit Systems

File Size:

580.55 KB

Description:

Frequency generator & integrated buffers.
