ICS9148-20 - Frequency Generator & Integrated Buffers

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS9148-20
Manufacturer	Integrated Circuit Systems
File Size	389.47 KB
Description	Frequency Generator & Integrated Buffers
Datasheet	ICS9148-20 Datasheet

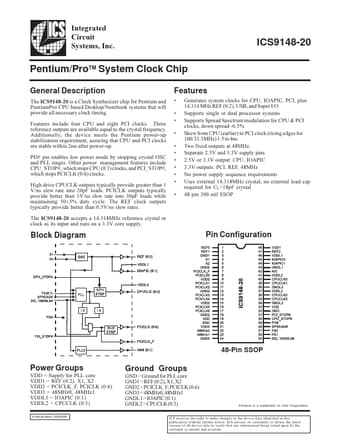

Additional preview pages of the ICS9148-20 datasheet.

Product details

Description

The ICS9148-20 is a Clock Synthesizer chip for Pentium and PentiumPro CPU based Desktop/Notebook systems that will provide all necessary clock timing.

Features

include four CPU and eight PCI clocks. Three reference outputs are available equal to the crystal frequency. Additionally, the device meets the Pentium power-up stabilization requirement, assuring that CPU and PCI clocks are stable within 2ms after power-up. PD# pin enables low power mode by stopping crystal OSC and PLL stages. Other power management features include CPU_STOP#, which stops CPU (0:3) clocks, and PCI_STOP#, which stops PCICLK (0:6) clocks. High drive CPUCLK outputs typically provi.
