ICS91857 - Value SSTL_2 Clock Driver

Integrated Circuit Systems

📥 Download Datasheet

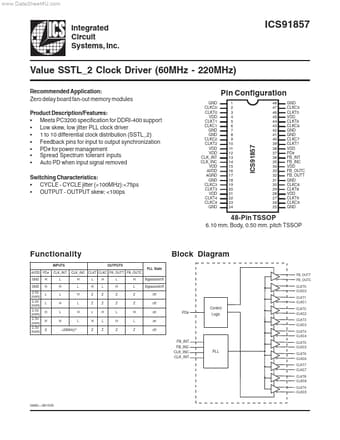

ICS91857 Datasheet Preview — Preview of ICS91857 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICS91857
Manufacturer	Integrated Circuit Systems
File Size	170.05 KB
Description	Value SSTL_2 Clock Driver
Datasheet	ICS91857_IntegratedCircuitSystems.pdf

ICS91857 Product details

Features

Meets PC3200 specification for DDRI-400 support.
Low skew, low jitter PLL clock driver.
1 to 10 differential clock distribution (SSTL_2).
Feedback pins for input to output synchronization.
PD# for power management.
Spread Spectrum tolerant inputs.
Auto PD when input signal removed Switching Characteristics:.
CYCLE - CYCLE jitter (>100MHz):.
