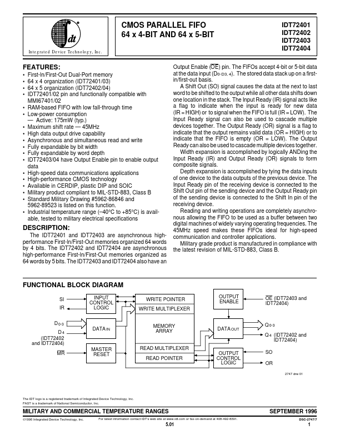

IDT72401 Datasheet Preview — Preview of IDT72401 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT72401
Manufacturer: Integrated Device Technology
File Size: 95.75 KB
Datasheet: IDT72401_IntegratedDeviceTechnology.pdf
Description: CMOS PARALLEL FIFO 64 x 4-BIT AND 64 x 5-BIT

IDT72401 Product details

Description

The IDT72401 and IDT72403 are asynchronous highperformance First-ln/First-Out memories organized 64 words by 4 bits.

Features

First-ln/First-Out Dual-Port memory 64 x 4 organization (IDT72401/03) 64 x 5 organization (IDT72402/04) IDT72401/02 pin and functionally compatible with MMI67401/02 RAM-based FIFO with low falI-through time Low-power consumption.
Active: 175mW (typ. ) Maximum shift rate.
45MHz High data output drive c.
