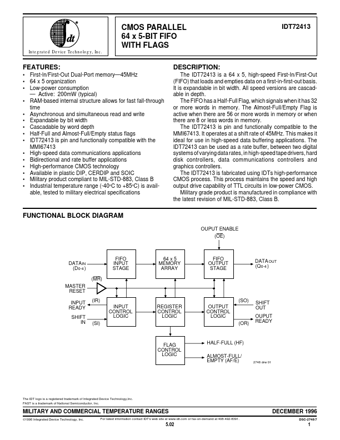

IDT72413 Datasheet Preview — Preview of IDT72413 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT72413
Manufacturer: Integrated Device Technology
File Size: 104.36 KB
Datasheet: IDT72413_IntegratedDeviceTechnology.pdf
Description: CMOS PARALLEL 64 x 5-BIT FIFO WITH FLAGS

IDT72413 Product details

Description

The IDT72413 is a 64 x 5, high-speed First-In/First-Out (FIFO) that loads and empties data on a first-in-first-out basis.

Features

First-ln/First-Out Dual-Port memory.
45MHz.
64 x 5 organization.
Low-power consumption.
Active: 200mW (typical).
RAM-based internal structure allows for fast fall-through time.
Asynchronous and simultaneous read and write.
Expandable by bit width.
Cascadable by word depth.
Half-Full and Almost-Full/Empty status flags.
IDT72413 is pin and functionally compatible with the MMI67413.
High-spee.
