IDT72421 - FIFO memories

Integrated Device Technology

📥 Download Datasheet

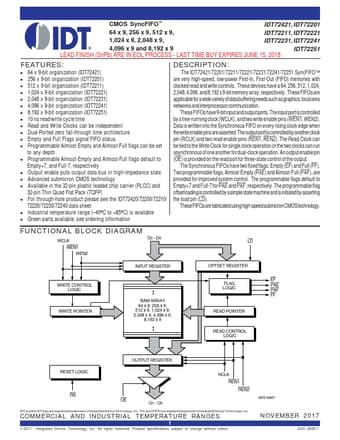

IDT72421 Datasheet Preview — Preview of IDT72421 PDF

Datasheet Details

Part number: IDT72421
Manufacturer: Integrated Device Technology
File Size: 107.76 KB
Datasheet: IDT72421_IntegratedDeviceTechnology.pdf
Description: FIFO memories

IDT72421 Product details

Description

The IDT72421/72201/72211/72221/72231/72241 SyncFIFO™ are very high-speed, low-power First-In, First- Out (FIFO) memories with clocked read and write controls.The IDT72421/72201/72211/72221/72231/72241 have a 64, 256, 512, 1024, 2048, and 4096 x 9-bit memory array, respectively.These FIFOs are applicable for a wide variety of data buffering needs such as graphics, local area networks and interprocessor communication.These FIFOs have 9-bit input and output ports.The input port is controlled

Features

64 x 9-bit organization (IDT72421) 256 x 9-bit organization (IDT72201) 512 x 9-bit organization (IDT72211) 1024 x 9-bit organization (IDT72221) 2048 x 9-bit organization (IDT72231) 4096 x 9-bit organization (IDT72241) 12 ns read/write cycle time (IDT72421/72201/72211) 15 ns read/write cycle time (IDT72221/72231/72241).
