IDT54FCT162260CT - FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

Name: IDT54FCT162260CT
SKU: IDT54FCT162260CT-401476

Integrated Device

📥 Download Datasheet

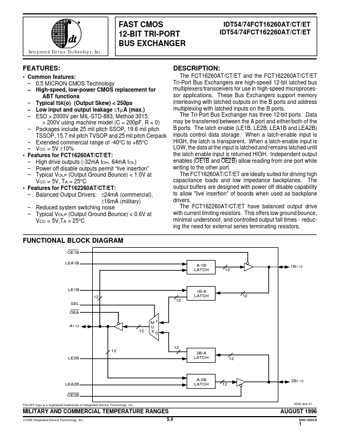

IDT54FCT162260CT Datasheet Preview — Preview of IDT54FCT162260CT PDF

Datasheet Details

Part number	IDT54FCT162260CT
Manufacturer	Integrated Device
File Size	132.18 KB
Description	FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER
Datasheet	IDT54FCT162260CT_IntegratedDeviceTechnology.pdf

IDT54FCT162260CT Product details

Description

The FCT16260AT/CT/ET and the FCT162260AT/CT/ET Tri-Port Bus Exchangers are high-speed 12-bit latched bus multiplexers/transceivers for use in high-speed microprocessor applications.

Features

FCT16260AT/CT/ET:.
High drive outputs (-32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
Features for FCT162260AT/CT/ET:.
Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
Reduced system switching noise.
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
