IDT74LVC162244A Datasheet - Integrated Device

IDT74LVC162244A 3.3V CMOS 16-BIT BUFFER/DRIVER

IDT74LVC162244A 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range CMOS power levels (0.4µ W typ. static) All inputs, outputs, and I/O are 5.

IDT74LVC162244A_IntegratedDeviceTechnology.pdf

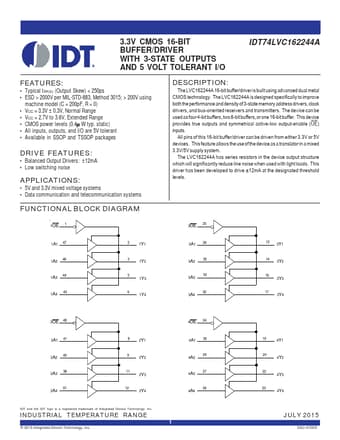

Preview of IDT74LVC162244A PDF
IDT74LVC162244A Datasheet Preview Page 2 IDT74LVC162244A Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74LVC162244A

Manufacturer:

Integrated Device

File Size:

105.75 KB

Description:

3.3v cmos 16-bit buffer/driver.
