IDT74LVC245A - 3.3V CMOS OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O

IDT74LVC245A Description

IDT74LVC245A 3.3V CMOS OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS .
DRIVE FEATURES: APPLICATIONS: This octal bus transceiver is built using advanced dual metal CMOS technology.

IDT74LVC245A Applications

* This octal bus transceiver is built using advanced dual metal CMOS technology. This high-speed, low power transceiver is ideal for asynchronous communication between two busses (A and B). The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overrides the

📥 Download Datasheet

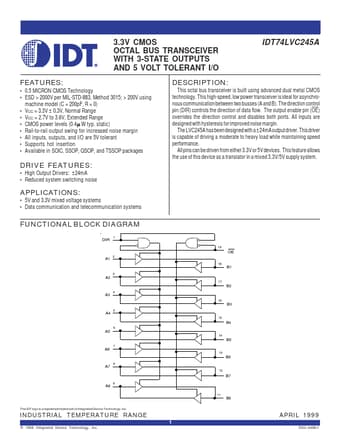

Preview of IDT74LVC245A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT74LVC245A
Manufacturer
Integrated Device
File Size
73.28 KB
Datasheet
IDT74LVC245A_IntegratedDeviceTechnology.pdf
Description
3.3V CMOS OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O
